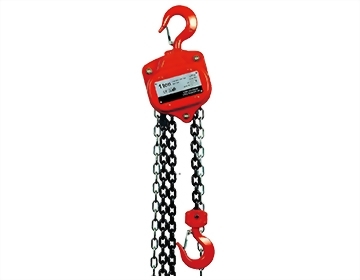

1. Compact design for limited headroom applications.
2. High strength steel frame and gear case built to
3. be durable for the rugged needs of construction and maintenance rigging.
4. Heat-treated spur gear efficiently designed toprovide smooth load handling and low hand chainpull.
5. Lightweight high strength grade 100 alloy steel load chain, except 0.5t &1t.
6. Open frame design for self-cleaning, quick load sheave inspection and easy hoist maintenance.
| Model | Safety Load | No. of falls | Load Chain Dia. | Grade | Proof load | Hand chain | Dimension (mm) | |||
| A | B | C | G | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| GXXW0.5T | 0.5 T | 1 | 5 x 15 mm | 80 | 0.75 T | 4.8 x 22 x 18mm | 127 | 144 | 285 | 37 |
| GXXW1T | 1 T | 1 | 6.3 x 19 mm | 80 | 1.5 T | 4.8 x 22 x 18mm | 147 | 157 | 315 | 45 |
| GXXW1.5T | 1.5 T | 1 | 7.1 x 21 mm | 100 | 2.25 T | 4.8 x 22 x 18mm | 147 | 174 | 340 | 49 |
| GXXW2T | 2 T | 1 | 7.1 x 21 mm | 100 | 3.0 T | 4.8 x 22 x 18mm | 147 | 174 | 355 | 52 |
| GXXW3T | 3 T | 2 | 7.1 x 21 mm | 100 | 4.5 T | 4.8 x 22 x 18mm | 147 | 206 | 475 | 67 |
| GXXW5T | 5 T | 2 | 9 x 27(2) mm | 100 | 7.5 T | 5.5 x 23.6 x 19 mm | 179 | 263 | 600 | 78 |
