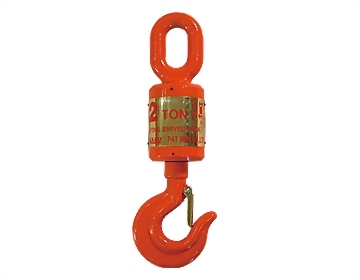

• H-A series A Type Eye & Hook

H-A series A Type Eye & Hook

Model : H-A series

For crane lifting applications. Safety factor 5:1


Model Safety Load Dimension
A B C D E F G H
H-A2 2 ton 355 mm 100 mm 80 mm 105 mm 105 mm 30 mm 57 mm 28 mm
H-A3 3 ton 375 mm 120 mm 80 mm 105 mm 105 mm 30 mm 56 mm 31 mm
H-A5 5 ton 375 mm 120 mm 100 mm 105 mm 105 mm 31 mm 56 mm 31 mm
H-A7.5 7.5 ton 485 mm 165 mm 120 mm 150 mm 170 mm 45 mm 70 mm 48 mm
H-A10 10 ton 540 mm 200 mm 150 mm 150 mm 190 mm 46 mm 76 mm 56 mm
H-A15 15 ton 645 mm 250 mm 150 mm 150 mm 245 mm 46 mm 75 mm 65 mm

Related Products

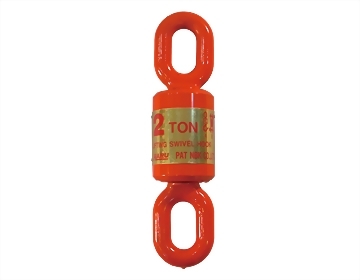

H-C series C Type Eye & Eye
