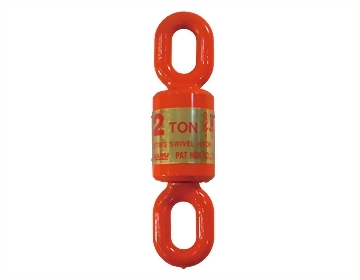

For crane lifting applications. Safety factor 5:1
| Model | Safety Load | Dimension | ||||||
| A | B | C | D | E | F | G | ||
|---|---|---|---|---|---|---|---|---|
| H-C2 | 2 ton | 310 mm | 100 mm | 80 mm | 105 mm | 105 mm | 30 mm | 57 mm |
| H-C3 | 3 ton | 330 mm | 120 mm | 80 mm | 105 mm | 105 mm | 30 mm | 57 mm |
| H-C5 | 5 ton | 330 mm | 120 mm | 100 mm | 105 mm | 105 mm | 31 mm | 58 mm |
| H-C7.5 | 7.5 ton | 465 mm | 165 mm | 120 mm | 150 mm | 150 mm | 46 mm | 78 mm |
| H-C10 | 10 ton | 500 mm | 200 mm | 150 mm | 150 mm | 150 mm | 45 mm | 69 mm |
| H-C15 | 15 ton | 550 mm | 250 mm | 150 mm | 150 mm | 150 mm | 46 mm | 76 mm |
| H-C20 | 20 ton | 550 mm | 250 mm | 175 mm | 150 mm | 150 mm | 45 mm | 77 mm |
