For medium load of cable

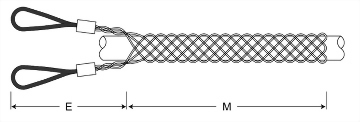

| Double-Weave, Flexible-Eye Pulling Grip | ||||
|---|---|---|---|---|
| Model | Cable Dia. | Breaking Load | E | M |
| Medium Length | ||||
| TG-050-24 | 10-15 mm | 2040 kg | 200 mm | 300 mm |
| TG-062-24 | 15-18 mm | 2540 kg | 200 mm | 500 mm |
| TG-075-24 | 18-25 mm | 3080 kg | 230 mm | 550 mm |
| TG-100-24 | 25-37 mm | 4350 kg | 230 mm | 600 mm |
| TG-150-24 | 37-50 mm | 7440 kg | 280 mm | 650 mm |
| TG-200-24 | 50-63 mm | 8390 kg | 300 mm | 700 mm |
| TG-250-24 | 63-75 mm | 11110 kg | 300 mm | 750 mm |
| TG-300-24 | 75-88 mm | 11110 kg | 350 mm | 800 mm |
| Model | Cable Dia. | Breaking Load | E | M |
|---|---|---|---|---|
| Long Length | ||||
| TG-100-36 | 25-37 mm | 4350 kg | 230 mm | 850 mm |
| TG-150-36 | 37-50 mm | 7440 kg | 280 mm | 900 mm |
| TG-200-36 | 50-63 mm | 8390 kg | 300 mm | 900 mm |
| TG-250-36 | 63-75 mm | 11110 kg | 300 mm | 950 mm |
| TG-300-36 | 75-88 mm | 11110 kg | 350 mm | 1000 mm |
| TG-350-36 | 88-101 mm | 14060 kg | 350 mm | 1050 mm |
| TG-400-36 | 101-114 mm | 14510 kg | 380 mm | 1100 mm |
| TG-450-36 | 114-127 mm | 15420 kg | 400 mm | 1200 mm |
| TG-500-36 | 127-152 mm | 16330 kg | 430 mm | 1500 mm |
| TG-600-36 | 152-177 mm | 17240 kg | 460 mm | 1650 mm |
