Prevent winding and tangling during pull
Must not pass through bull wheel on puller
Select the swivel with a suitable working load

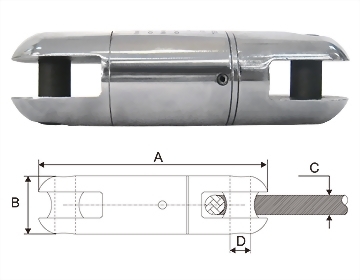

| Model | Safety Load | Breaking Load | A | B | C | D |
|---|---|---|---|---|---|---|
| S-24 | 1.6 ton | 4.8 ton | 96.9 mm | 24 mm | 12 mm | |
| S-32 | 3 ton | 9 ton | 136 mm | 32 mm | 14 mm | 12.7 mm |
| S-36 | 5 ton | 12 ton | 156 mm | 36 mm | 16.3 mm | 12.7 mm |
| S-39 | 6 ton | 14 ton | 157 mm | 38 mm | 16.3 mm | 15 mm |
| S-42 | 7 ton | 20 ton | 158 mm | 42 mm | 16 mm | 15.7 mm |
| S-45 | 8 ton | 25 ton | 172 mm | 45 mm | 19 mm | 16 mm |
| S-52 | 10 ton | 30 ton | 184 mm | 52 mm | 20 mm | 18 mm |
| S-60 | 15 ton | 50 ton | 240 mm | 62 mm | 26 mm | 22 mm |
| S-80 | 33 ton | 80 ton | 345 mm | 80 mm | 26 mm | 32 mm |
