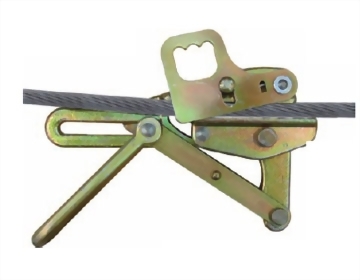

1. Double V shape for inside jaw
2. For both bare and insulated conductors
3. Lineman can use a hot-line stick to open the latch
and place grip on the wire
4. When the stick is released, the latch closes the wire
instantly to prevent the grip accidentally falling off
from the wire
5. Double round shape for inside jaw
| Model | Safety Load | Min Cable Dia. | Max Cable Dia. | Jaw L. |
|---|---|---|---|---|
| 1656-20H | 2 ton | 5.08 mm | 10.16 mm | 106 mm |
| 1656-30H | 2 ton | 7.87 mm | 13.46 mm | 124 mm |
| 1656-40H | 3.6 ton | 13.46 mm | 18.80 mm | 140 mm |
| 1656-50H | 3.6 ton | 18.80 mm | 21.84 mm | 140 mm |
| 1656-60H | 3.6 ton | 21.84 mm | 24.38 mm | 140 mm |
